Specialty Stock Reels.

OPEN/CLOSE Models and Specs by clicking the title:

100 Series Non-Powered Single Reel with Straightener Models

MODELR34NA / SB4

STOCKREEL_Model-R34NA_SB4

100 SERIES NON-POWERED SINGLE REEL WITH STRAIGHTENER

Save floor space and maximize production with a Rapid-Air Reel/Straightener Combo.
Non-powered.

Max. capacities 150-500 lbs. (68-227kg).

Adjustable
Center Model
Max Coil Weight Max Coil OD Max Material Width
Reel/Straightener
with SB4
R34NA/SB4 150 lbs
(68kg)
24”
(61cm)
4”
(102mm)
R35NA/SB4 150 lbs
(68kg)
30”
(76cm)
4”
(102mm)
R36NA/SB4 150 lbs
(68kg)
36”
(91cm)
4”
(102mm)
R45NA/SB4 250 lbs
(114kg)
30”
(76cm)
4”
(102mm)
R46NA/SB4 250 lbs
(114kg)
36”
(91cm)
4”
(102mm)
R56NA/SB4 500 lbs
(227kg)
36”
(91cm)
4”
(102mm)
R58NA/SB4 500 lbs
(227kg)
48”
(122cm)
4”
(102mm)

WITH STRAIGHTENER DIMENSIONS
(click image to enlarge)

STOCKREEL_100SeriesWithStraight

1000 Series Non-Powered Single Reel with Straightener – Low Models

MODEL LCRMA1512 / SBX8

STOCKREEL_1000SeriesWithStraight



1000 SERIES NON-POWERED SINGLE REEL WITH STRAIGHTENER – LOW

Low height non-powered reel sand powered straightener. Right or left payout.
Max. capacity 1,500 (682kg)

Adjustable Center
Model
Drag Brake Max Coil Weight Max Coil OD Max Material Width
Single Non-Powered Reel
With Straightener
LCRPA1512/SBX8 Air 1,500 lbs
(682kg)
48”
(122cm)
8”
(15cm)
LCRPA1512/SBX12 Air 1,500 lbs
(682kg)
48”
(122cm)
12”
(31cm)
LCRPA2506/SCX6 Air 2,500 lbs
(1136kg)
60”
(152cm)
6”
(15cm)

LOW HEIGHT WITH STRAIGHTENER DIMENSIONS
(click image to enlarge)

STOCKREEL_1000SeriesWithStraightGraph

100 Series Dual Swivel Reel Models

MODEL RS56A

STOCKREEL_DualSwivel

100 SERIES DUAL SWIVEL REELS

Save valuable production time with dual swivel reels. Powered and non-powered.
Max. capacities 150-500 lbs. (68-227kg).

Rapid-Air 1000 Series dual swivel reels offer all the features of the 100 Series dual swivel reels in a larger, heavy-duty unit designed to save valuable production time when handling heavy coils. Benefit from quick changeover and minimize downtime between loading coils or stock. The swivel reel is designed so the operator can load or unload the inactive reel head while the job is still running.

1000 Series Dual Swivel Reel Models

MODEL RSA6000

STOCKREEL_1000DualSwivel

1000 SERIES DUAL SWIVEL REELS

For heavy-duty coil handling.  Variable speed powered and non-powered.
Hydraulic expansion and brakes.
Max. capacities 1,500-6,000 lbs. (682-2727kg).

Rapid-Air 1000 Series dual swivel reels offer all the features of the 100 Series dual swivel reels in a larger, heavy-duty unit designed to save valuable production time when handling heavy coils.  Benefit from quick changeover and minimize downtime between loading coils or stock.  The swivel reel is designed so the operator can load or unload the inactive reel head while the job is still running.

Rim Drive Payout Reel Models

MODEL RD317S
Rim drive reel may have straightener
package added.

STOCKREEL_RimDrive

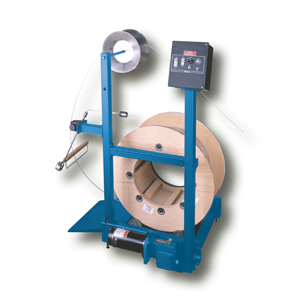

RIM DRIVE PAYOUT REELS

Allows payout from either press side or backside of reel.

Our rim drive reel can be ordered with a Rapid Roll or straightener package.  Choose the control that best fits your needs.  Our three controls include standard loop control as well as auxiliary touch control or sonic control.  See controls for details. Read more…

 Reel Model Payout Max Coil Weight  Max OD  Min OD Material Max Width Speed per min Size HP
Rim Drive Only
RD317S 3,000 lbs
(1360kg)
40”
(1016mm)
18”
(457mm)
17”
(431mm)
2,400”
(60m)
1/2
RD417M 4,000 lbs
(1814kg)
40”
(1016mm)
18”
(457mm)
17”
(431mm)
3,600”
(91m)
1
Modular Multi-Head Reel Combinations

MODEL ML2B*R13NF*R13NF*R24A*R24A

STOCKREEL_ModularMulti

MODULAR MULTI-HEAD REEL COMBINATIONS

Multi-head reel combinations provide payout and rewinding capabilities and interleaf protection.

Any number of multi-head setups can be put in place to accommodate your manufacturing needs. One reel setup can be in full operation while the other setup is standing by, ready to make a smooth and quick changeover. Less downtime means added production efficiently. Inserting interleaf material to protect delicate, plated or intricately shaped materials that could snag or tangle during manufacturing is a simple procedure. The use of multi-head reel combinations allows you to put tension on the stock for a tighter, more compact wrap. Consult factory for special arrangements.

(click image to enlarge)

STOCKREEL_ModularChart1

Example: ML2A2B *PIV R23A *R23NF

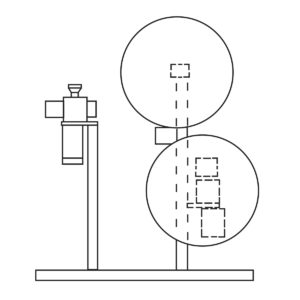

A three head modular system unit for left-hand active loop. *PIV is on left post, R23A on lower right-hand post, and *R23NF on upper right-hand post.

Optional equipment for this system could include: Model LC-DSE Dual Switch to select upper or lower head, non-powered straightener, loop control system, optional post heights.

(click image to enlarge)

STOCKREEL_ModularChart2

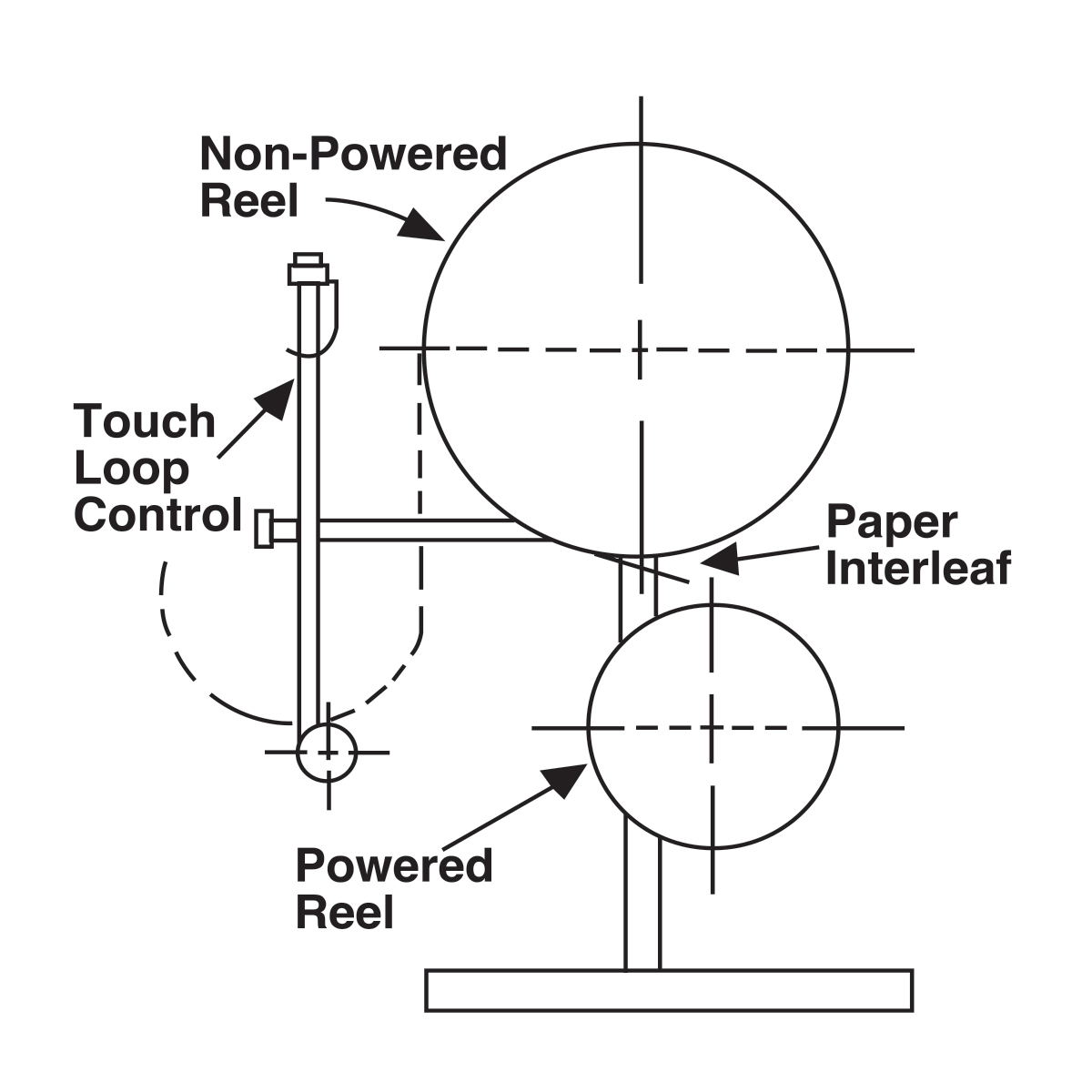

Typical dual reel setup when paper interleaf is required.

(click image to enlarge)

STOCKREEL_ModularChart3

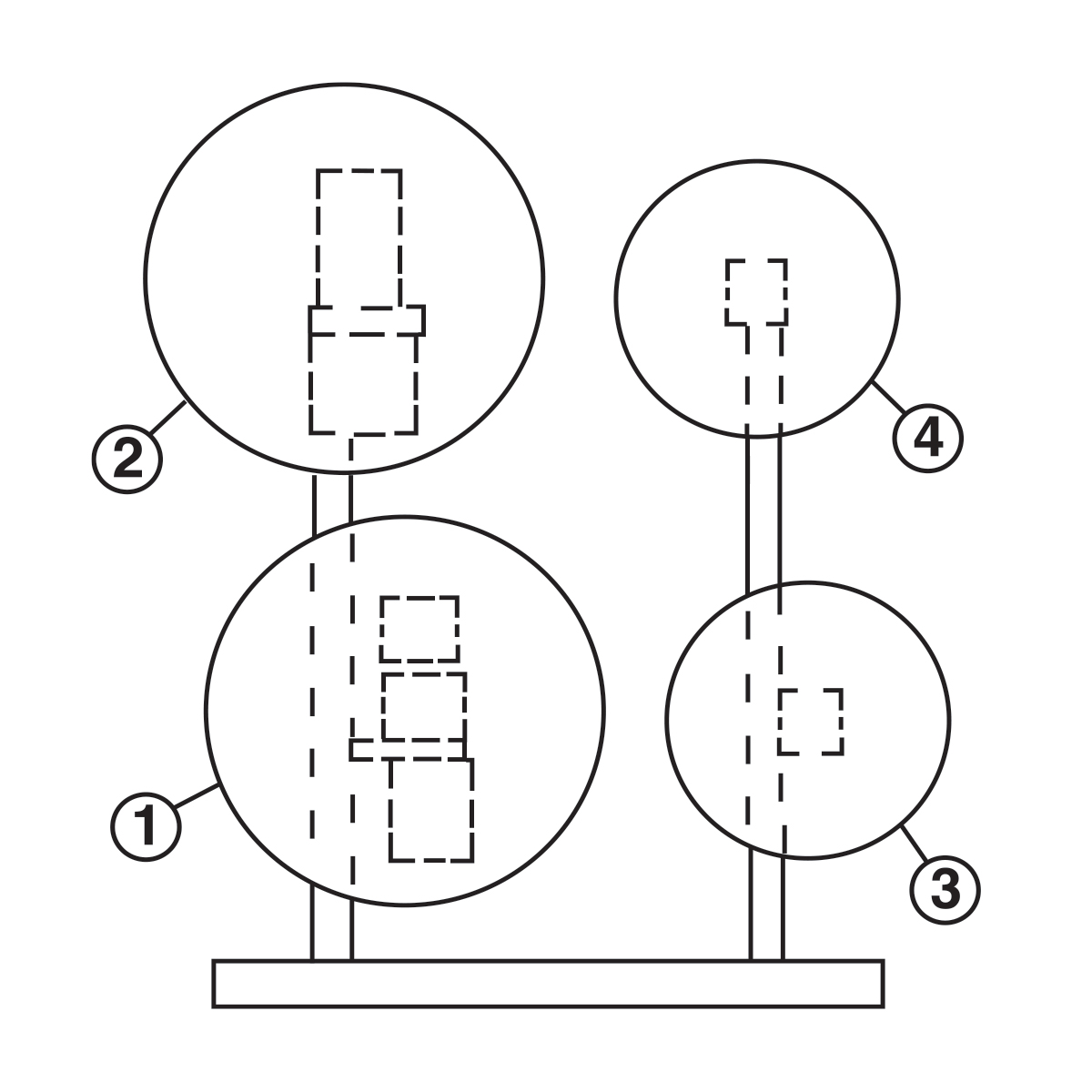

Both left-hand and right-hand modular system units are assembled in the sequence illustrated.
